FS-10 Laser Specifications
|
| Product name | FS-10 |
|---|
| Wavelength | 780nm |
|---|
| Maximum power | 10W |
|---|
| Repetition rate | 10kHz |
|---|
| Pulse duration | 200fs |
|---|
| Pulse energy | 1mJ |
|---|
| Energy stability | 3.5%rms |
|---|
| Output energy stability | ±3% |
|---|
| Beam diameter | 6mmφ |
|---|
| Spatial beam quality | M2 < 3 |
|---|
| Divergence |  1mrad |
|---|
| Size | W1300×D2500×H1800 mm |
|---|
| Weight | 800kg |
|---|
| Power supply | 100V, 1φ200V, 3φ200V |
|---|
| Electrical power | 0A, 60A, 25A |
|---|
Laser Specifications
|
 |
With the FS-10, a titanium-doped sapphire crystal pumped by a solid-state green laser is utilized as the amplification medium.
An effective heat exchange mechanism has minimized the thermal lens effect caused by the high-intensity pumping of over 100 W.
Together with the large-tolerance cavity design, we have succeeded in developing a highly stable, high-power femtosecond regenerative amplifier with high-beam quality.
|
|
|
The FS-10 also has a user-friendly software with which anyone can easily bring the best of performance from any functions and features.
|
|
|

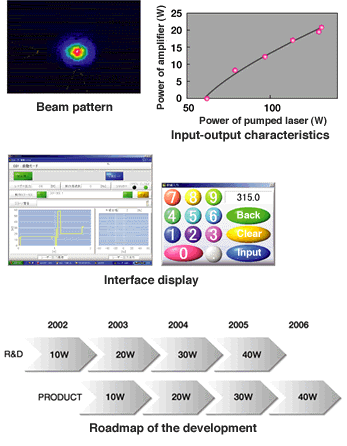

We keep on improving the output power of this product with an aim to maintain its position as the world's most powerful femtosecond laser.
|
|
|
|
|
|
