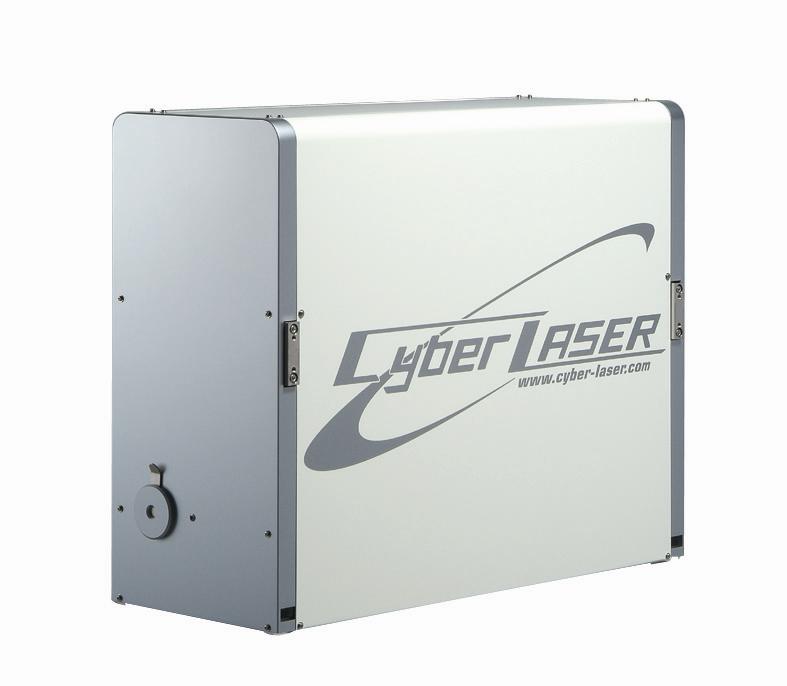

IFRIT Laser Specifications
|
| Product name | IFRIT |
|---|
| Wavelength | 780 nm / 800nm |
|---|
| Average power | 1.0W |
|---|
| Repetition rate | 1 kHz / 2 kHz** |
|---|
| Pulse duration | ≤250fs* |
|---|
| Pulse energy | 1 mJ / 500 μJ** |
|---|
| Energy stability | 1.5%rms* |
|---|
| Output energy stability | 1% rms for 100 hours |
|---|
| Beam diameter | 6mmφ |
|---|
| Spatial beam quality | M2 < 1.5* |
|---|
| Divergence |  1mrad |
|---|
| Stability pointing |
30μrad rms |
| Size | W317×D786×H740 mm |
|---|
| Weight | 125kg |
|---|
| Warm up period |
30 minutes |
| Power supply | 1φ100V×1, 1φ200V×1 |
|---|
| Power consumption |
100V/20A, 200V/10A |
| Class of laser product |
Class 4 laser product |
| Guarantee period | 1 year or 5,000 hours |
|---|
*Typical value, **Set in the factory
|
|
 |
Function
■Pulse duration control*
･Change laser pulse duration from 250 fs to 2 ps.
■ APMS
(Auto Power Management System)*
･Stabilization system for femtosecond laser's power.
･Automatically compensated for power drop caused by optical components
and mechanical displacement.
■ Burst
･Output of specified pulse number.
･Pulse number can be entered from touch panel display or external equipment.
■ Modulation of repetition rate
･Repetition rate can be set with the max. number divided by integer.
･Number can be entered with touch panel display.
■ RS-232C interface
･Remote operation with RS-232 interface.
■ Power regulator*
･Output power regulation achieved without changing beam quality.
■ Controllable shutter*
･Control the shutter by electrical signal.
(This accessory is necessary for industrial applications)
*Installed in the factory
Laser Specifications
|
|
The specifications of IFRIT are targeted at 1 kHz repetition, 1 W average
power, and 250 fs pulse duration, which is the largest common denominator
for a variety of already-existing applications.
|
|
|

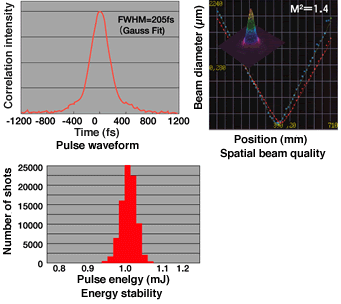

As for the spatial beam quality, its M-squared value is less than 1.5, meaning single-mode operation.
|
|
|
The fluctuation of the femtosecond laser output is less than 0.3% over 10 hours and less than 0.9% over 100 hours. Shot-to-shot energy deviation is also less than 0.3%. The IFIRT provides the light that satisfies you with any applications.
|
* Specifications in this document are subject to change without notice.
|
|
|
