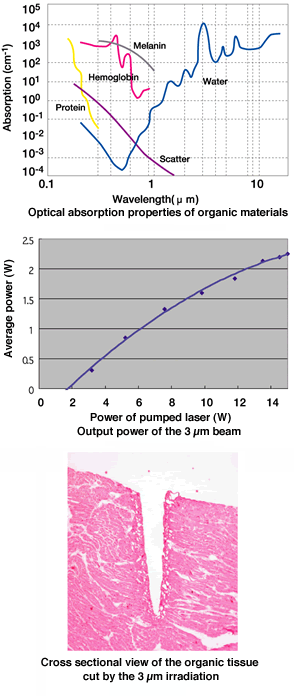

(Specifications) A-cure Specifications Product name A-cure Oscillator type Optical parametric oscillation pumped by LD pumped solid-state laser Apparatus One packaged Wavelength 2.8−3.0µm Output power 2W (20mJ×100Hz) Repetition rate 40−100kHz Pulse duration 100−500µs Pulse energy 20mJ−50mJ Output energy stability ±10%(2σ) Fiber diameter 700µm Fiber length 1m Electrical power 1500VA Power supply AC100V Size W340×D780×H880 mm Weight 100kg * Specifications in this document are subject to change without notice. Outline
