| Product name | C-cure |
|---|

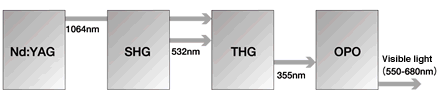

| Oscillator type | Optical parametric oscillation
Pumped by LD pumped
Solid-state laser |
|---|
| Wavelength | 550-680nm |
|---|
| Wavelength accuracy | <1nm |
|---|
| Maximum power | >20mW |
|---|
| Repetition rate | 100Hz |
|---|
| Pulse duration | 10ns |
|---|
| Pulse energy | >0.2mJ |
|---|
| Output energy stability | <5%(2σ) |
|---|
| Beam diameter | M2<4 |
|---|
| Size | W600×D800×H290 mm |
|---|
| Weight | 100kg |
|---|
| Power supply | AC100V |
|---|
| Electrical power | <1500VA |
|---|
|
Laser Specifications
|
|
Wide band wavelength tunability without mirror change
|
|
|
Small spectrometer is installed and the oscillating wavlength is monitored
|
|
|
|
* Specifications in this document are subject to change without notice.
|
|
